RM 1260/i

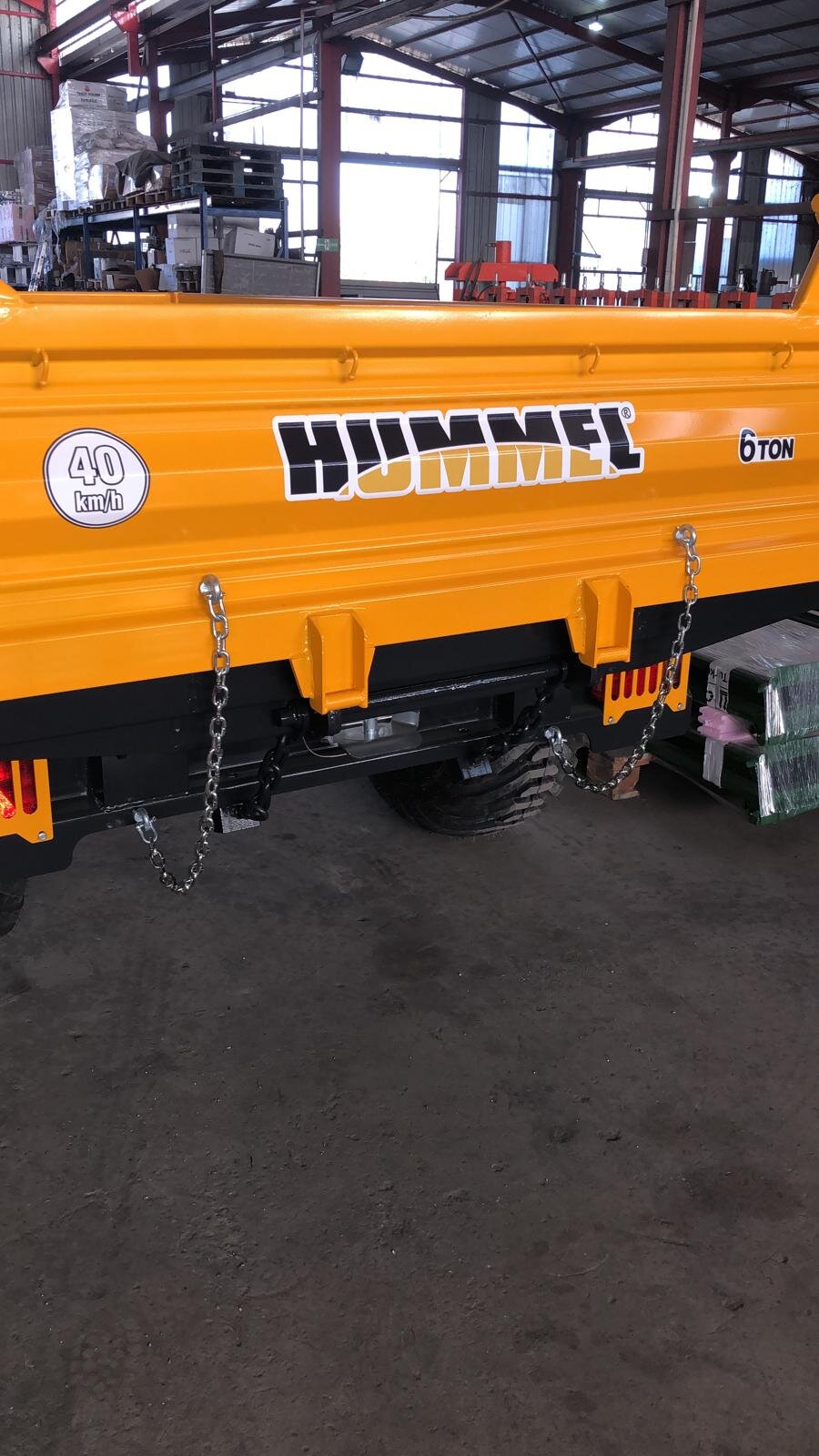

Hummel 6 tonne single axle dropside tipping trailer manufactured in Turkey to European standards and specially constructed at the factory for NZ conditions. All the “extras” provided by other manufacturers are included with this trailer! Check the specifications and compare the value for money that this trailer offers. Factory fitted extras include the following:

  • Hydraulic brakes

  • Hand brake

  • Wheel chocks to totally secure the trailer on a slope

  • Swivel tow eye

  • Deck prop to safely work while the deck is raised

  • Lights fully guarded and inside a channel

  • Hydraulic towbar landing leg to adjust drawbar height for connecting. (Requires a pair of double acting hydraulic outlets on the tractor to operate)

  • OR, we can fit an optional manually operated towbar jack which has a sliding insert to lift the foot well clear of the ground. No moving the jack from lifting position to transport position. It is strongly mounted with six bolts

  • Tow hitch at the rear for a second trailer or pulling anything else

  • Tool box for holding load straps, chains etc

  • Water container and soap dispenser for hand washing when necessary

  • The tail board is swung high to easily tip off bulky loads

  • Tail board is opened automatically as the trailer lifts to 15 degrees.

  • Strong pipe under the tipping body for securing tie down straps

  • Spreading chains fitted

  • Folding step on front to enable easy access to the trailer

  • The sides are one piece units that fold down easily to create a flat deck trailer for carting bales or fertilizer or pallets.

Model: Hummel RM1260/i

Specifications:

Empty weight 1350kgs

Load capacity 6000kgs

Total allowable weight  7350kgs

Load volume approx 3.4m3

Body length 3700mm

Body width  2000mm

Side height  500mm

Side thickness 2mm

Floor thickness 3mm

Deck height from ground 900mm

Wheel track 1600mm

Wheels and tyres 400/60-15.5 (14ply tyres x 2)

Tipping angle 48 degrees

Spreading chains fitted.

Paint process: Chassis is coated with acrylic paint. All sides powder coated

Viewing and a demonstration is welcomed. Email or call for a quote.
